Why do I need this?

Whether you’re expecting a mechanic to stop by your hangar or you’re looking for another way tosafely secure your property, your HangarBot Industrial Door Sensor will alert you in real-time whenever your hangar door is open or closed. Get notifications right to your smartphone with the HangarBot Mobile App!

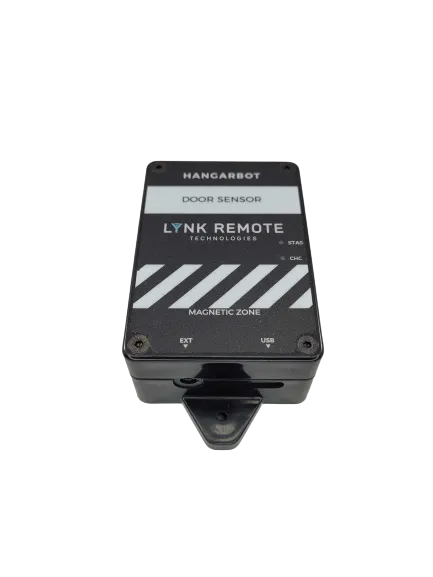

This device is an industrial-gradesensor; meaning it’s tough and won’t be damaged under the pressure of heavy equipment. Pair it with any HangarBot Hub of your choice for complete remote control.

How are we different?

Designed by a pilot for pilots. With HangarBot’s Industrial Door Sensor, you can now manage and monitoryour flying experience in ways not previously possible with 1 simple app.

Equipped with a magnetic contact for roll-up, overhead and hangar doors, this sensor can be safely mounted on the ground or wall. For pilots that want a way to open and close the hangar door from anywhere in the world, pair this sensor with the HangarBot Door Controller.

TECHNICAL SPECIFICATIONS:

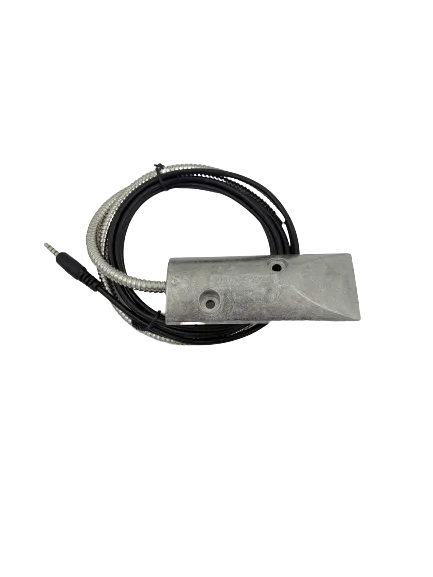

It comes with an adjustable magnet with an L bracket and a 24” armored cable.

Supply Voltage: 3.3VDC to 28VDC, 100mA max

Detection Type: Magnetic Reed Switch

Switch Type: Form A (SPST) Reed

Dimensions: (W x D x H) 1.75" x 4.25" x .5"

Magnet bracket: 2" x 2" x 4"

Cable Length: 8' cable

REQUIREMENTS:

• Pick a base station: HangarBot 4G Hub (I don’t have Wi-Fi in my hangar) or HangarBot Hardwire Hub (I have Wi-Fi in my hangar)
• Smartphone running iOS 9 or higher or Android 4.1 or higher
• FREE HangarBot Mobile App (Latest version)
• Cellular Data Plan or pre-existing Wi-Fi connection
