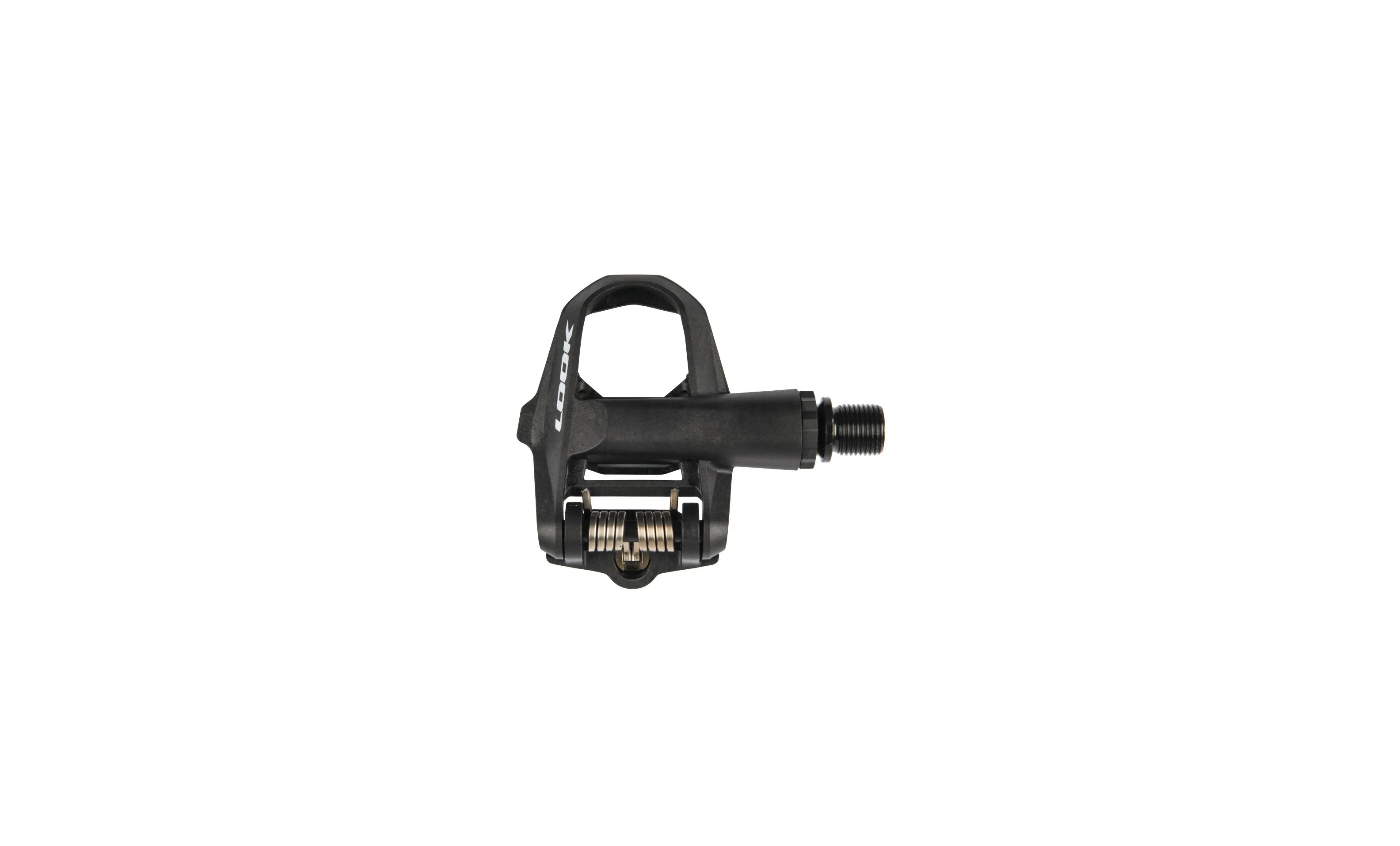

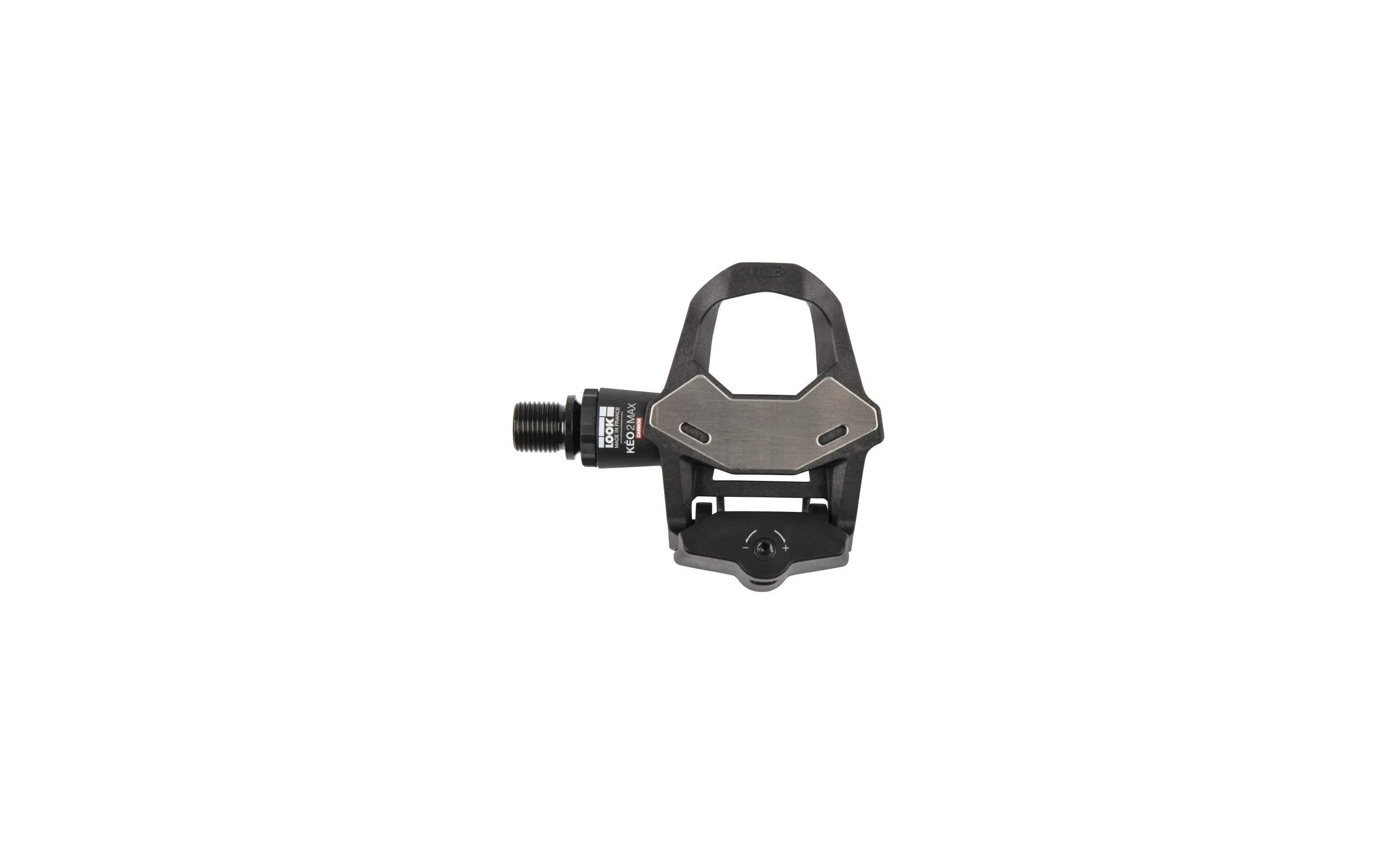

Ready for new adventures? Follow your dreams with the KEO 2 MAX CARBON pedal. With its 500 mm² contact area, it offer perfect power transfer from your legs to your bike. The carbon body ensures lightness and efficiency while the Chromoly axle offers robustness in all conditions. Install your pedal, adjust the tension, and you are ready to ride.
WHY YOU'LL LOVE IT?
THE "SIMPLE" PEDAL WITH THE CARBON BODY
- A pedal that weighs barely 125 grams
- A wide, stainless steel contact area for excellent stability thru the pedal stroke
- A carbon body combined with our renowned spring technology
TECHNICAL SPECIFICATIONS
SPINDLE
| Spindle material | Chromoly |
|---|
BODY & PLATEFORM
| Technology | Spring |
|---|---|
| Body material | Carbon |
| Platform material | Stainless steel |
| Platform area | 500 mm² |
| Platform width | 60 mm |
| Total stack height (pedal cleat) | 17,3 mm (11 6.3 mm) |
| Q Factor | 53 mm |
RETENSION & CLEATS
| Retention | 8 to 12 |
|---|---|
| Cleats | KEO grip |
WEIGHT & ACCESSORIES
| Pedal | 125 g |
|---|---|
| Weight pair cleats | 312 g |
