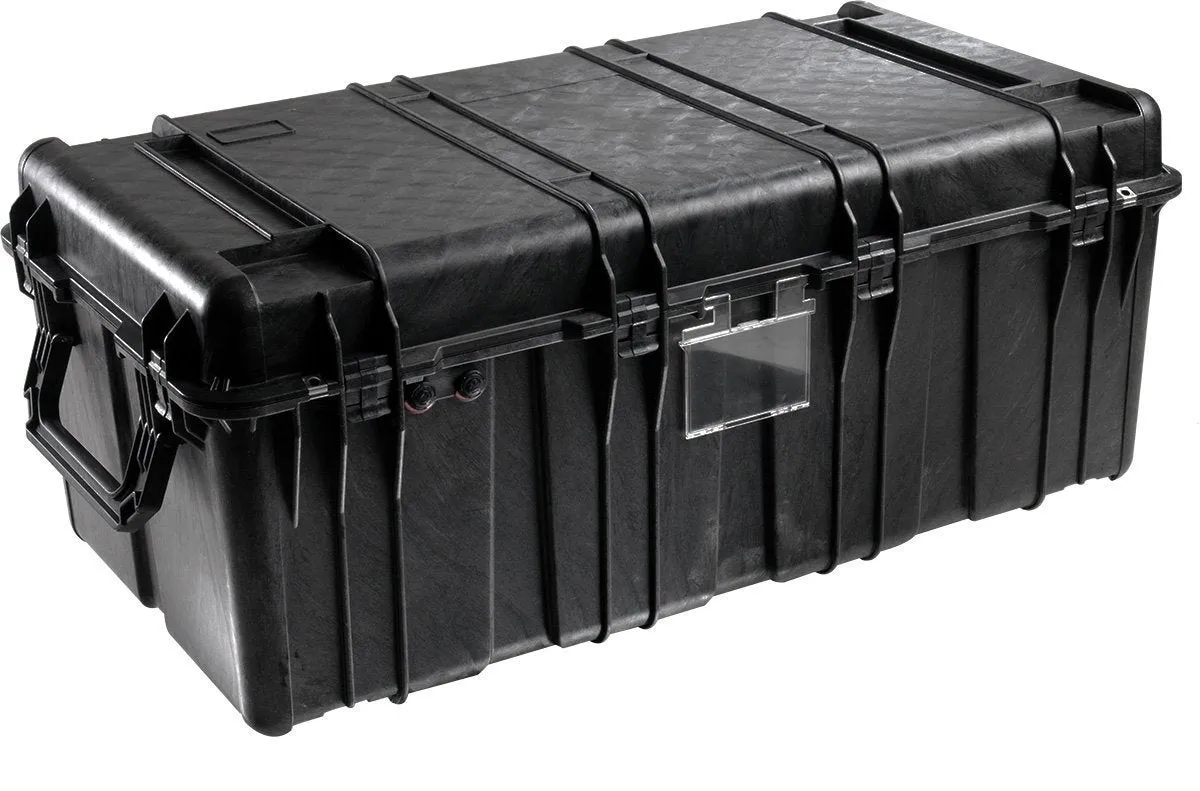

Pelican™ Protector Case™
With over 11 cubic feet (0.311 cubic meters) of space, you can store, protect, and move large loads in seconds. The reinforced honeycomb deck and lid construction provide support for heavy equipment, or multiple stacking on a 463L pallet. Opening the case at any altitude is not a problem- the dual integrated automatic pressure equalization valves keep moisture out and prevent vacuum lock, and the double wide grip makes lifting easy. With an IP55 certification, the 0550 Transport Case will protect your gear against rain and dirt. The 0550 Transport Case: Built to move-by forklift, by wheel, by hand.
FEATURES
- Over 11ft3 (.311m3) of storage space
- Open cell core with solid wall design - strong, light weight

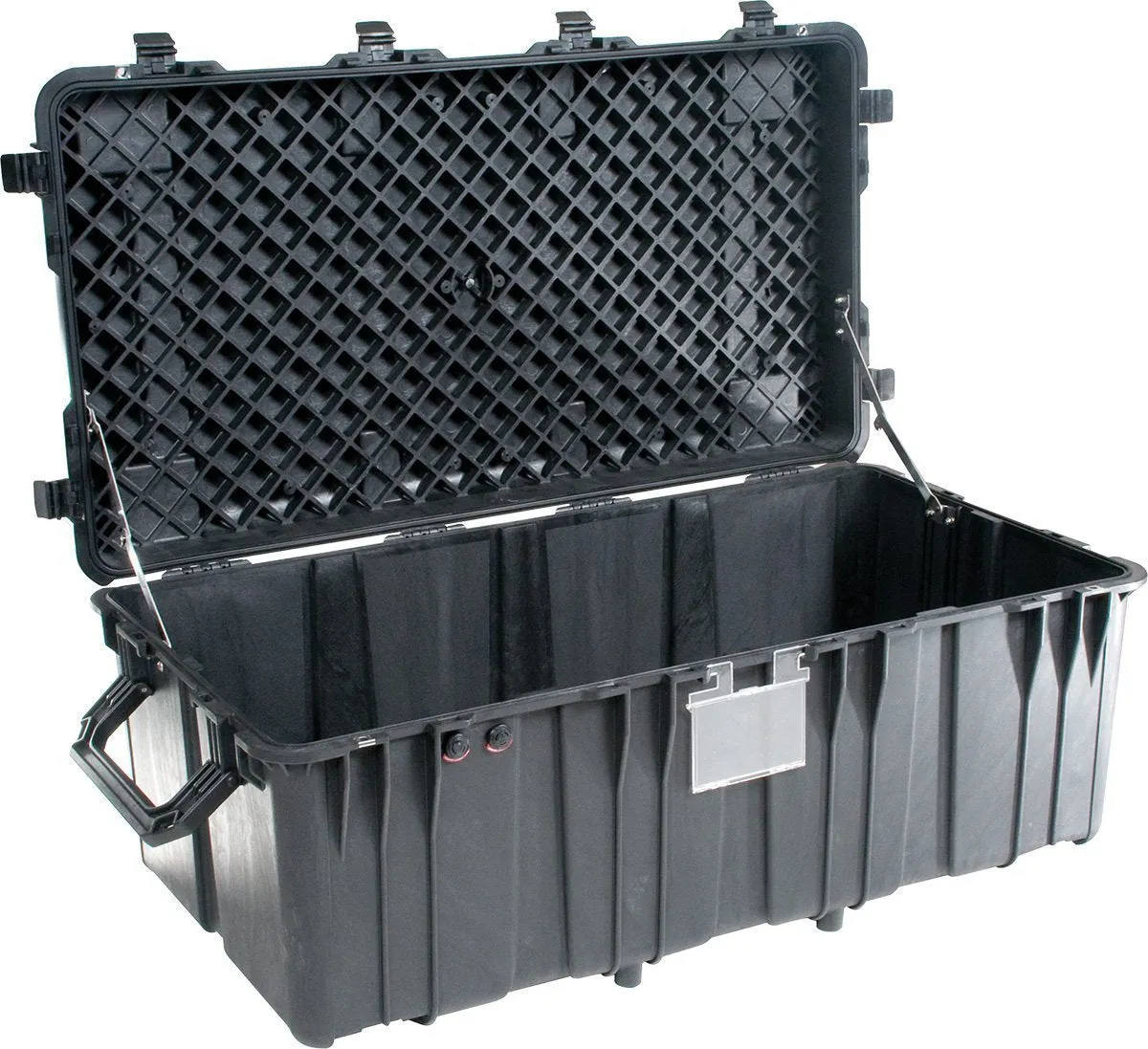

- Locking metal Lidstays keep lid locked in open position

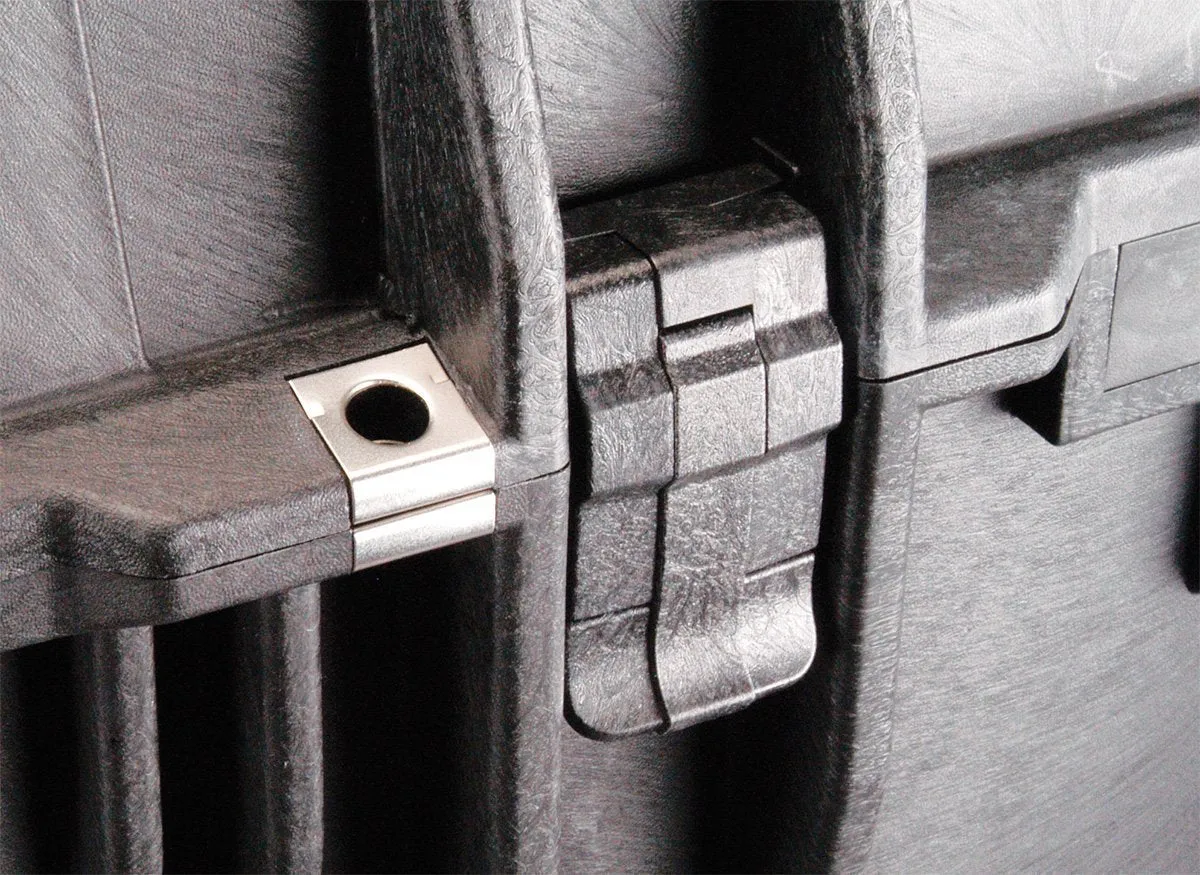

- Easy open Double Throw latches
- Stainless steel hardware and padlock protectors

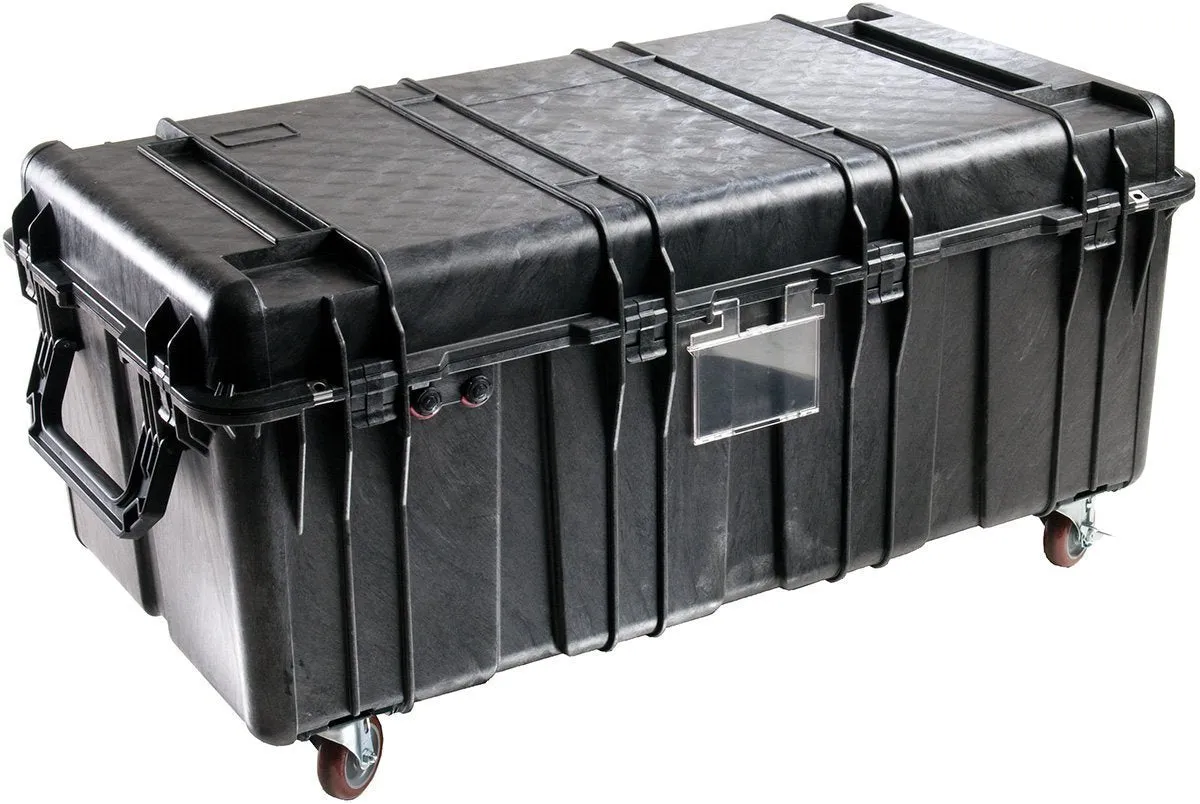

- Optional Caster Wheel Kit complete with brakes
- Lifetime Guarantee of Excellence
- Optional Pallet Riser Kit
- Dual Integrated Automatic Pressure Equalization Valves
- Four extra-deep base-to-lid locking cleats ensure maximum stacking stability
- O-ring seal for dust and water resistant seal (IP55)

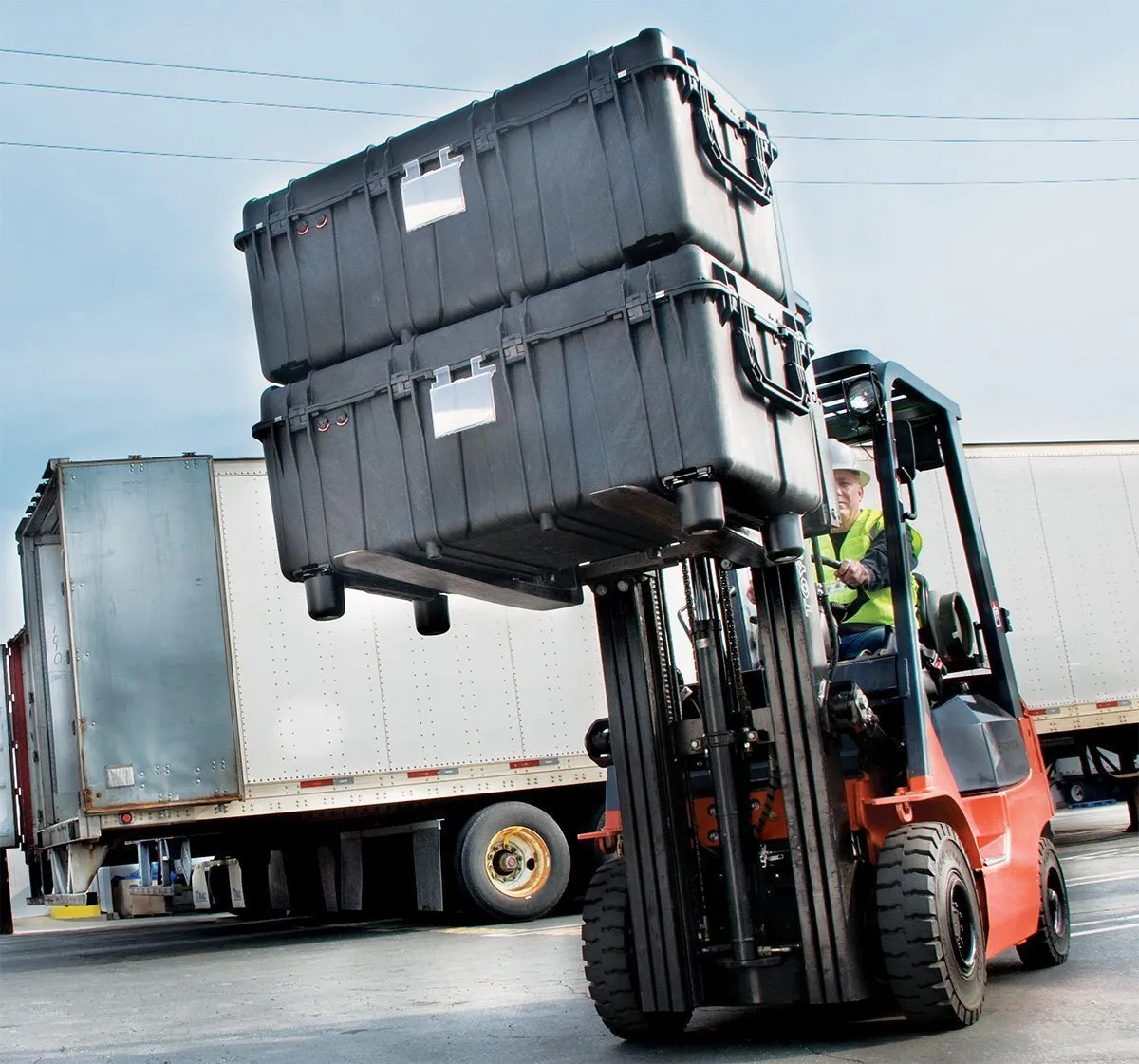

- Built to move: by forklift, by wheel or by hand

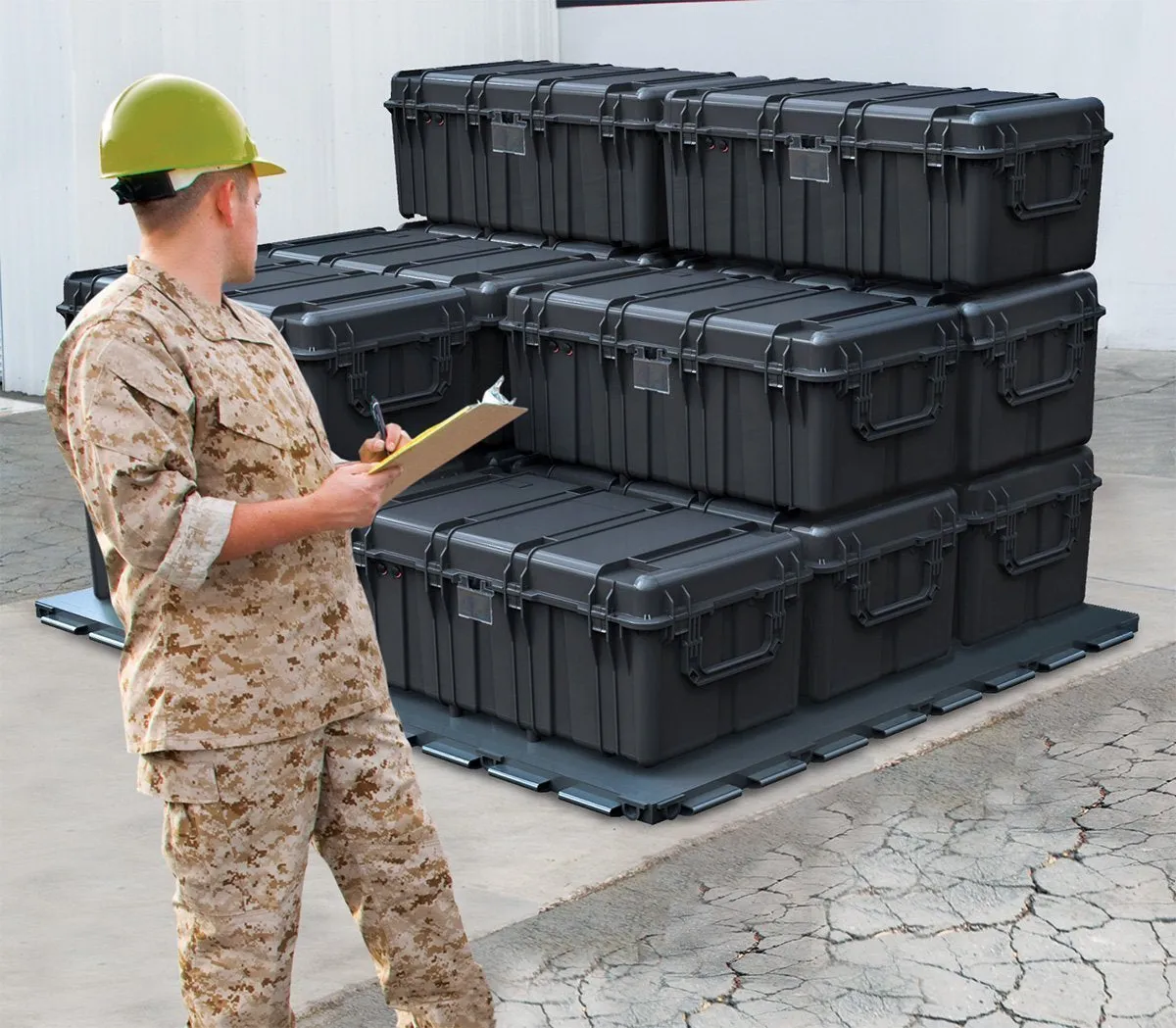

- Fit six 0550 Cases per 463L military pallet, 18 when stacked!
- Reinforced honeycomb deck and lid for added strength
- Store documents outside the case with our Document Container
SPECIFICATIONS
- Interior (L×W×D): 47.57 x 24.07 x 17.68 in (120.8 x 61.1 x 44.9 cm)
- Exterior (L×W×D): 51.05 x 27.54 x 22.79 in (129.7 x 70 x 57.9 cm)
- Lid Depth: 3.19" (8.1 cm)
- Bottom Depth: 14.49" (36.8 cm)
- Total Depth: 17.68" (44.9 cm)
- Int Volume: 11.72 ft³ (0.332 m³)
- Weight With Foam: 95.00 lbs (43.1 kg)
- Weight Empty: 79.20 lbs (35.9 kg)
- Buoyancy: 820.00 lbs (371.9 kg)
- Body Material: Polypropylene
- Latch Material: ABS
- O-Ring Material: Polymer
- Pins Material: Stainless Steel
- Purge Body Material: ABS
- Purge Vent Material: 3 Micron Hydrophobic Non-Woven
- Foam Layer 1 (Lid): 3.20" (8.1 cm) - Convolute
- Foam Layer 2 (Base: )0.50" (1.3 cm) - Pad

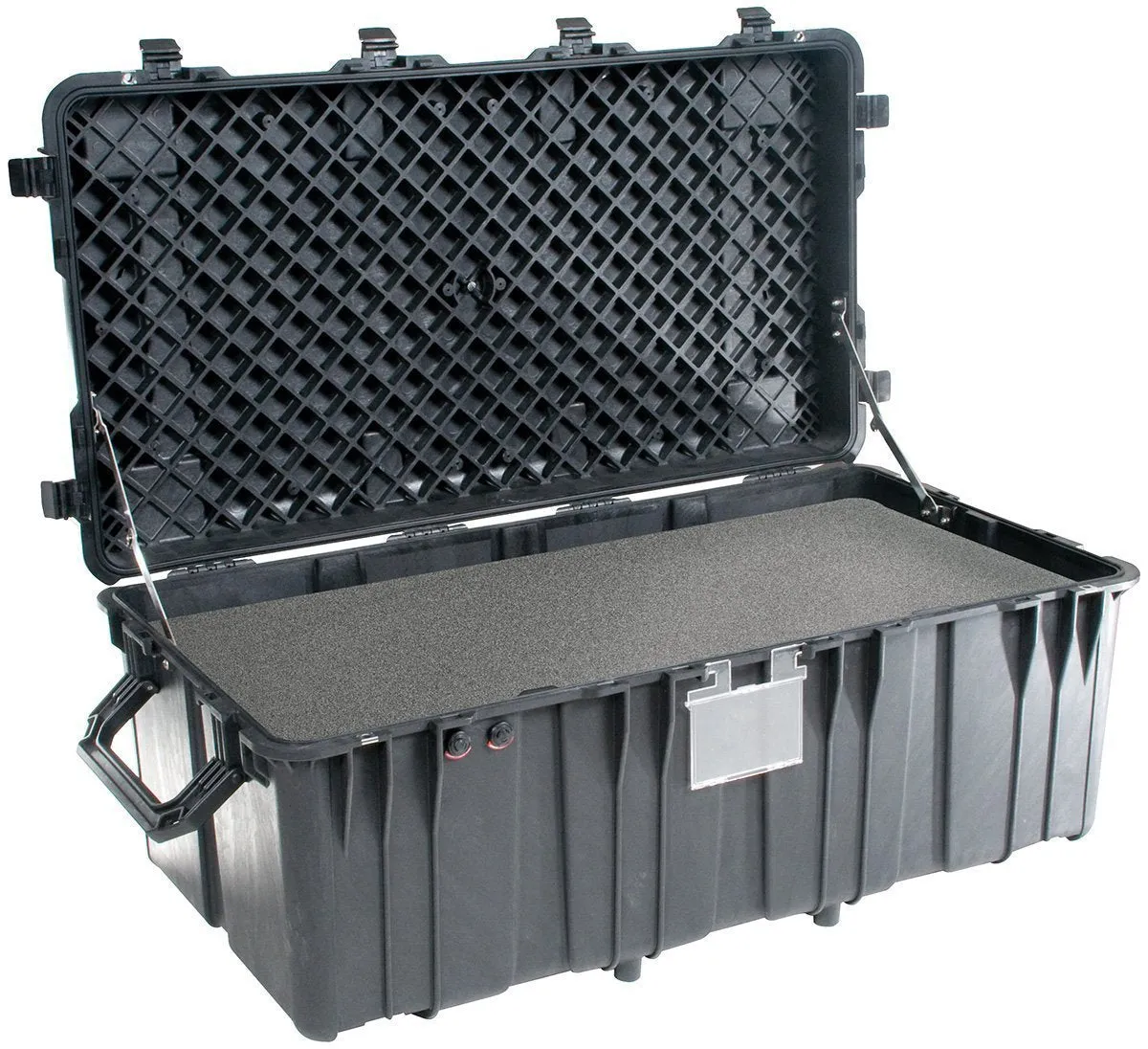

- Foam Layer 3 (Base): 3.50" (8.9 cm) - Pick N Pluck
- Foam Layer 4 (Base): 3.50" (8.9 cm) - Pick N Pluck
- Foam Layer 5 (Base): 3.50" (8.9 cm) - Pick N Pluck
- Foam Layer 6 (Base): 3.50" (8.9 cm) - Pick N Pluck
- Minimum Temperature: -40° F (-40 ° C)
- Maximum Temperature: 210° F (99 ° C)
